B-852

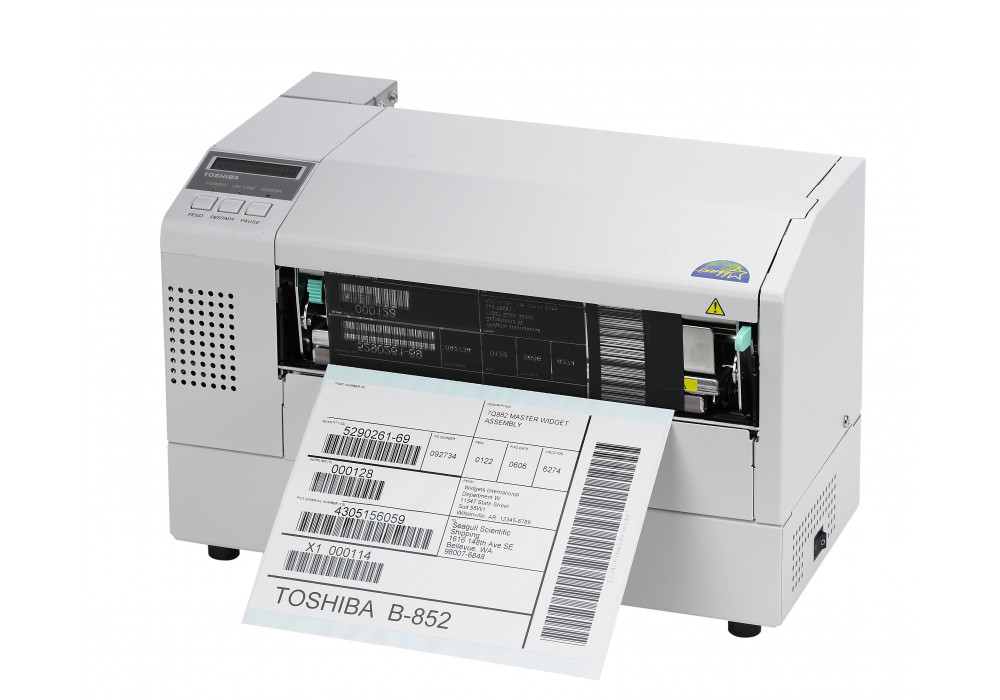

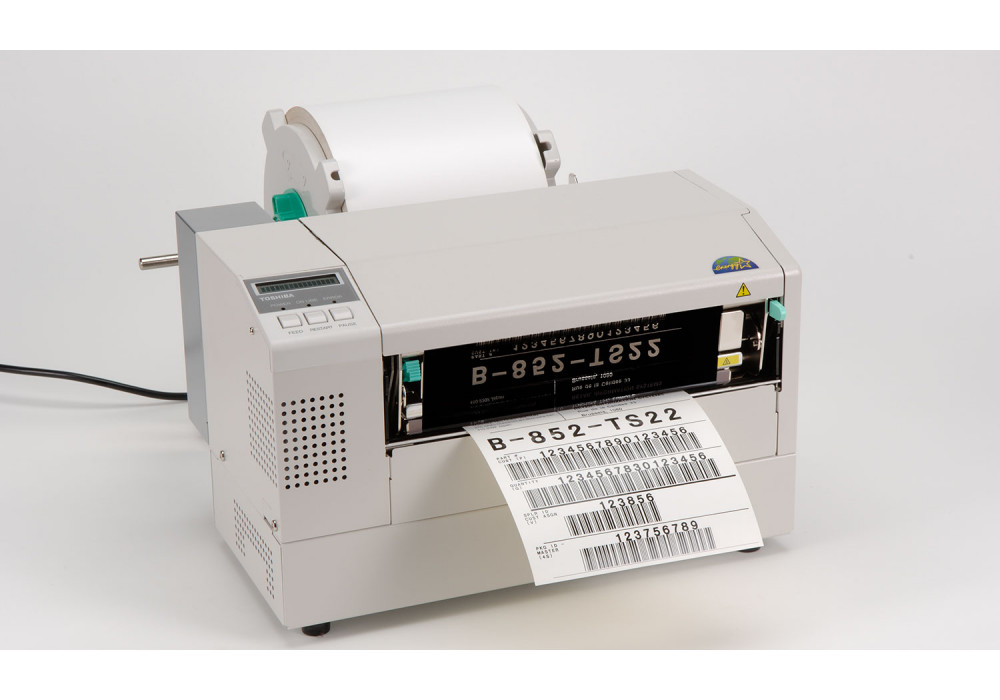

The B-852 combines a sturdy inner mechanism and a robust design to offer a compact and reliable wide web printer.

The B-852 inherits from Toshiba experience and know-how in manufacturing long lasting and high quality printers. Thanks to the reliability of its engine and its easy maintenance, the B-852 delivers the large labels you need with very attractive running costs. The large array of interfaces, the various options and the compact footprint of the B-852 make this printer easy to install in both office or industrial environments. Test
  • Ideally suited to print large label sizes
  • New and improved connectivity
  • High speed processing of large files
  • Easy servicing for low Total Cost of Ownership
  • Surprising capacity to adapt to various working places

Specifications: B-852

GENERAL

Printing Technology:
Thermal transfer, Direct thermal
Thermal Print Head Type:
Flat
Interface:
Parallel, Ethernet 10/100 BaseT, USB 2.0
Memory:
16 MB (Flash ROM), 16 MB (SD-RAM)
Alignment Base:
Central

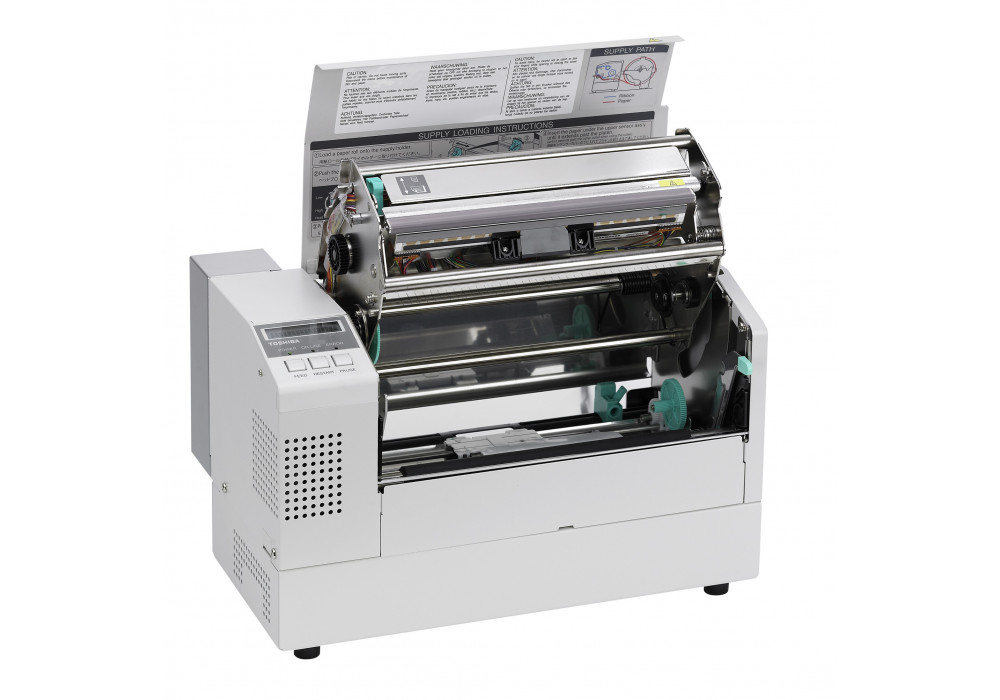

Media loading:
Top opening
Sensor:
Reflective, Transmissive

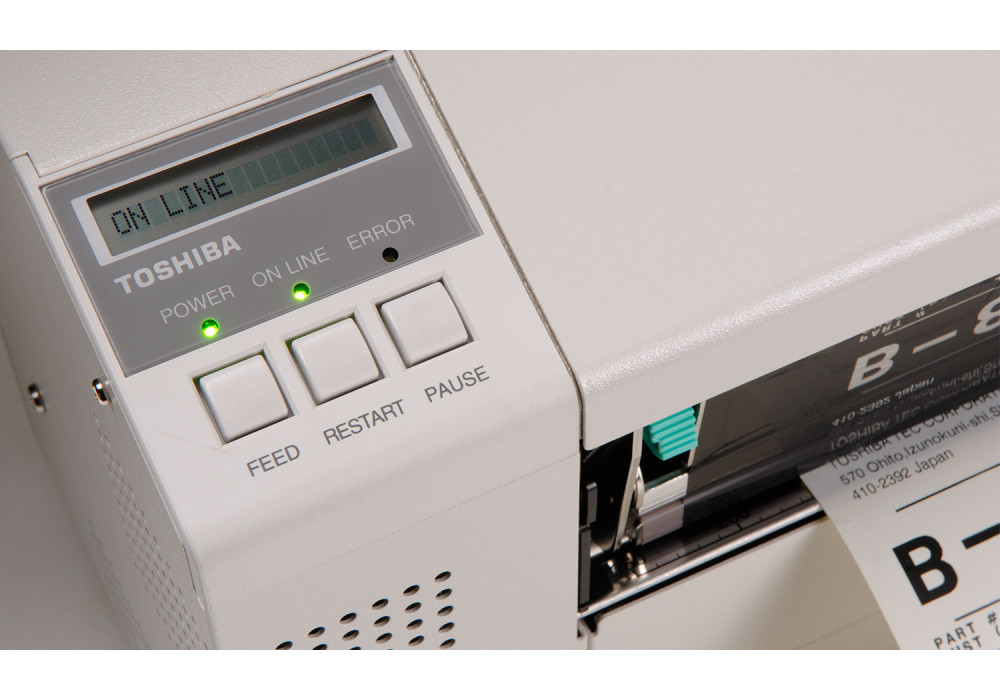

User Interface:
LCD screen (16 characters x 1 line), Status indicator
Operator keys:
Feed, Restart, Pause
Dimensions (W x D x H):
385 x 181 x 243 mm
Weight:
15.6 kg
Duty Cycle**:
15,000 labels / day

PRINT

Print width:
8.5 inches (216.8 mm)
Print Speed:
Up to 4 ips (101.6 mm/sec)
Resolution:
300 dpi
Fonts:
Bitmap, Outline, Price Fonts
Print length:
Max. 640 mm
Barcodes:
EAN8, EAN13, JAN8, JAN13, UPC-A, UPC-E, NW-7, CODE 39, CODE 93, ITF, MSI, CODE128, EAN128, Industrial 2 of 5, Customer Barcode, POSTNET, RM4SCC, KIX CODE, RSS14
2D Codes:
Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, CP Code

MEDIA

Media width:
100 - 242 mm
Media thickness:
0.08 - 0.18 mm
Max outer roller diameter:
230 mm
Core diameter:
Max. 76.2 mm
Media type:
Vellum paper and labels, Matt coated paper, Glossy coated paper, Synthetic film, PET film, Polyimide

RIBBON

Max ribbon roll diameter:
72 mm
Standard ribbon length:
300 m
Ribbon width:
120 - 220 mm
Ribbon Core Width :
Fixed 240 mm

FUNCTIONS

Programming language:
TPCL, BCI
Issue mode:
Batch, Auto cut*
System Features:
SNMP tool for network management
**:
GUIDE to the no. of 4'' high labels a day a printer may produce. This is not a guarantee nor a limitation of performance
*:
Option
**:
GUIDE to the no. of 4'' high labels a day a printer may produce. This is not a guarantee nor a limitation of performance

Accessories

  • B-SA704-RTC-QM-R - Real Time Clock
  • B-SA704-RS-QM-R - Serial Interface
  • B-SA704-IO-QM-R - Expansion I/O Board
  • B-7208-QM-R - Cutter
