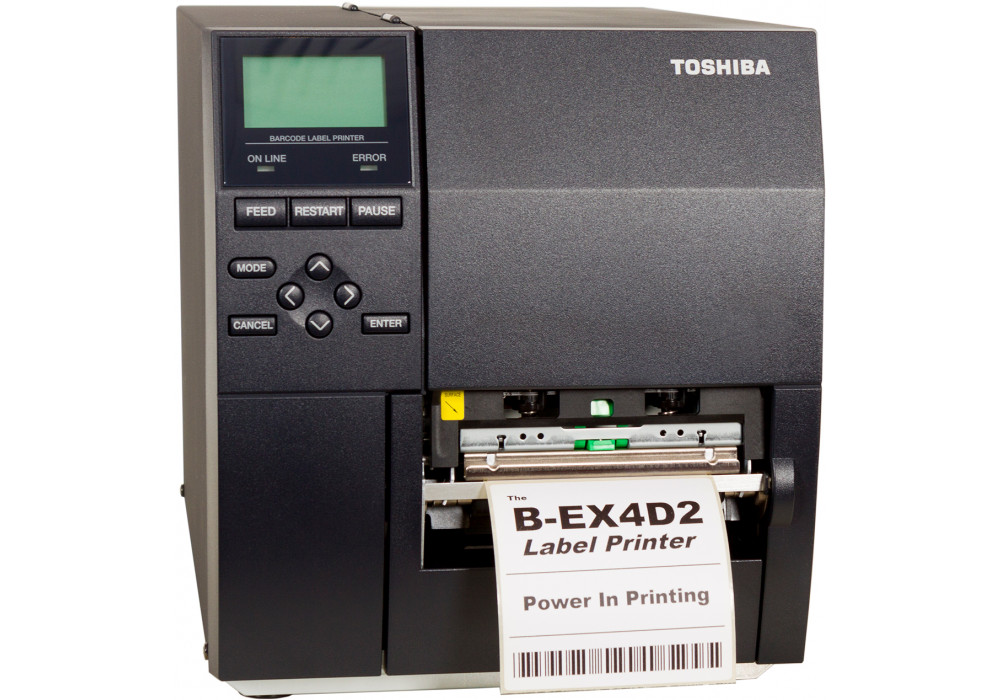

B-EX4D2

Toshiba’s printing solutions are characterisedby high quality and efficiency. Our printers can help reduce your running costs as well as your overall costs.

The B-EX4D2 is an excellent printer with various capabilities in logistics and the retail industry. The focus of this product lies on the direct thermal printing method which is commonly preferred in logistics. A reliable high performance printer with the capacity to produce high output volumes. Attractive price positioning. A variety of options are available for seamless integration to all customer needs.
  • High quality and efficiency.
  • Attractive running costs due to direct thermal technology.
  • Maximum flexibility thanks to snap-in print head replacement.
  • Environmentally friendly and ENERGY STAR compliant.

Specifications: B-EX4D2

Printing Technology:
Direct thermal
Thermal Print Head Type:
Flat
Interface:
Ethernet 10/100 BaseT, USB 2.0
Memory:
16 MB (Flash ROM), 32 MB (SD-RAM)
Alignment Base:
Left side
Media loading:
Side opening
Sensor:
Reflective , Transmissive
User Interface:
LCD screen (Graphic 128 x 64 dots), Status indicator
Operator keys:
Feed, Restart, Pause, Menu navigation
Dimensions (W x D x H):
278 x 460 x 310 mm
Weight:
17 kg
Duty Cycle**:
30,000 labels/day
Print width:
4.09 inches (104 mm)
Print Speed:
Up to 12 ips (304.8 mm/sec)
Resolution:
203 dpi
Fonts:
Bitmap, Outline, Writable characters, Optional True Type
Print length:
Max. 1,498 mm
Barcodes:
EAN8, EAN13, JAN8, JAN13, UPC-A, UPC-E, NW-7, CODE 39, CODE 93, ITF, MSI, CODE128, EAN128, Industrial 2 of 5, Customer Barcode, POSTNET, RM4SCC, KIX CODE, GS1 DataBar
2D Codes:
Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, CP Code
Media width:
22 - 114 mm
Media thickness:
0,08 - 0,17 mm
Max outer roller diameter:
200 mm
Core diameter:
76.2 mm
Print Functions:
Z Mode ready
Programming language:
TPCL, BCI
Issue mode:
Batch, Auto cut*, Peel-off*
System Features:
Snap-in Print Head, Energy Star compliant, SNMP tool for network management, BarTender UltraLite, Cover damper*
**:
GUIDE to the no. of 4' high labels a day a printer may produce. This is not a guarantee nor a limitation of performance

Accessories

  • B-EX204-QM-R - Disc Cutter
  • B-EX700-CEN-QM-R - Centronics Parallel Interface
  • B-EX700-IO-QM-R - Expansion I/O Board
  • B-EX700-RFID-H1-QM-R - UHF RFID Module (13.56 MHz)
  • B-EX700-RS-QM-R - Serial Interface
  • B-EX700-RTC-QM-R - Real Time Clock
  • B-EX700-WLAN-QM-R - Wireless LAN Interface
  • B-EX704-TPH2-QM-R - 203 dpi Thermal Print Head
  • B-EX904-DP-QM-R - Cover Damper
  • B-EX904-H-QM-R - Peel-Off Module
