B-EX4T2

Experience, know-how and commitment to quality - all in one.

Combining the features and functionality of the established B-EX range, the B-EX4T2 series combines flat head technology, left edge aligned media and a 600m ribbon, which requires fewer media changes and equals a lower cost of ownership. The range is available in a variety of resolutions for the most diverse industrial printing applications.
  • Low cost industrial printing
  • Flat head for compatibility with competitor estates
  • High-specification, high-throughput, high-performance and extremely durable
  • USB and Ethernet as standard; serial, parallel, USB host and WLAN are optional

Specifications: B-EX4T2

Printing Technology:
Thermal transfer, Direct thermal
Thermal Print Head Type:
Flat
Interface:
Ethernet 10/100 BaseT, USB 2.0
Memory:
16 MB (Flash ROM), 32 MB (SD-RAM)
Alignment Base:
Left side
Media loading:
Side opening
Sensor:
Reflective, Transmissive
User Interface:

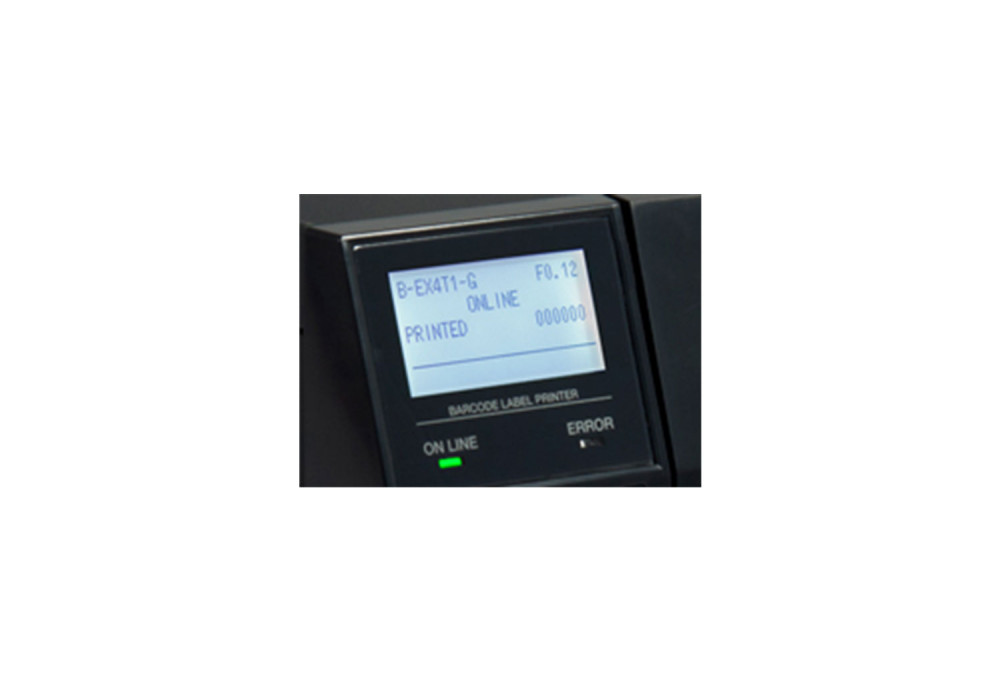

LCD screen (Graphic 128 x 64 dots), Status indicator
Operator keys:
Feed, Restart, Pause, Menu navigation
Dimensions (W x D x H):
278 x 460 x 310 mm
Weight:
17 kg
Duty Cycle**:
30,000 labels / day
Print width:
4.09 inches (104 mm)
Print Speed:
Up to 12 ips (304.8 mm / sec)
Resolution:
203 dpi, 300 dpi, 600 dpi
Fonts:
Bitmap, Outline, Writable characters, Optional True Type
Print length:
Max. 1,498 mm (203 dpi, 300 dpi), Max. 498 mm (600 dpi)
Barcodes:
EAN8, EAN13, JAN8, JAN13, UPC-A, UPC-E, NW-7, CODE 39, CODE 93, ITF, MSI, CODE128, EAN128, Industrial 2 of 5, Customer Barcode, POSTNET, RM4SCC, KIX CODE, GS1 DataBar
2D Codes:
Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, CP Code
Media width:
22 - 114 mm
Media thickness:
0,08 - 0,17 mm
Max outer roller diameter:
200 mm
Core diameter:
76.2 mm
Media type:
Vellum paper and labels, Matt coated paper, Glossy coated paper, Synthetic film, PET film, Polyimide
Max ribbon roll diameter:
90 mm
Standard ribbon length:
600 m
Ribbon width:
41 - 112 mm
Ribbon Core Width:
Flush Cut to Ribbon Width
Print Functions:
Z Mode ready
Programming language:
TPCL, BCI
Issue mode:
Batch, Auto cut*, Peel-off*
System Features:
Double Engine Ribbon Tension Control, Snap-in Print Head, Energy Star compliant, SNMP tool for network management, BarTender UltraLite, Cover damper*
**:
GUIDE to the no. of 4'' high labels a day a printer may produce. This is not a guarantee nor a limitation of performance

Accessories

  • B-EX204-QM-R - Disc Cutter
  • B-EX700-CEN-QM-R - Centronics Parallel Interface
  • B-EX700-IO-QM-R - Expansion I/O Board
  • B-EX700-RS-QM-R - Serial Interface
  • B-EX700-RTC-QM-R - Real Time Clock
  • B-EX700-WLAN-QM-R - Wireless LAN Interface
  • B-EX904-DP-QM-R - Cover Damper
  • B-EX904-H-QM-R - Peel-Off Module
