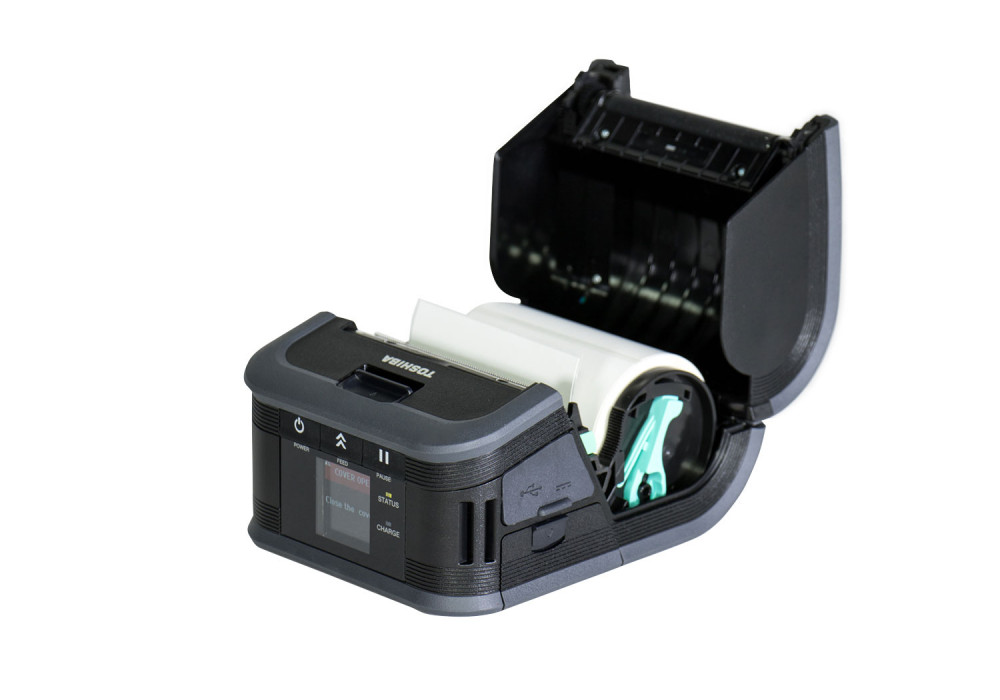

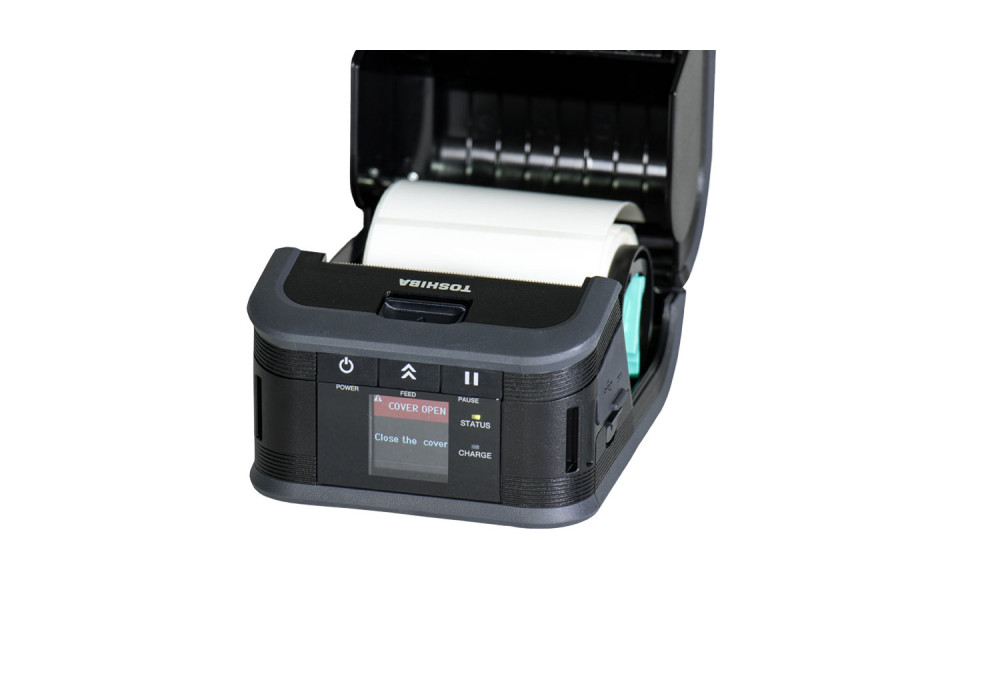

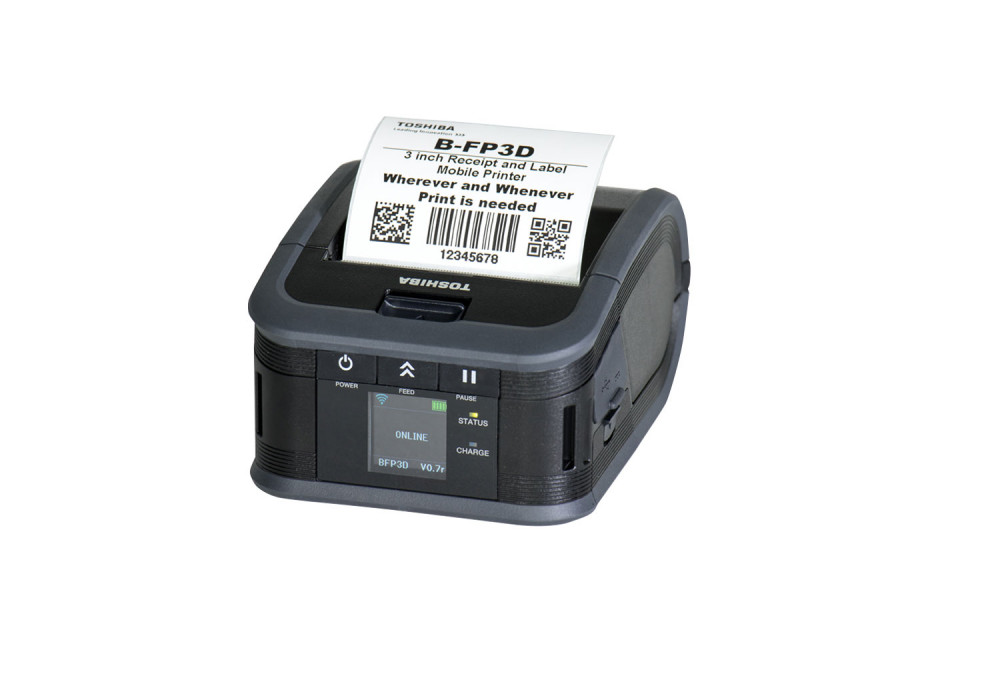

Compact and robust, the Toshiba portable thermal printer B-FP3D adds new dimensions to the unwired workforce.

Technology for every workplace, delivering advanced functionality, ease of use and peace of mind. Based on this philosophy the B-FP3 series can handle a multitude of applications across the widest range of markets. From mobile POS or queue busting, through to issuing tickets or receipts atthe roadside and cash on delivery for Logistical operations.
  • Full colour LCD Display for easy operation
  • Rugged and durable in extreme conditions
  • Adaptable connectivity with multi lingual printer language support
  • Super high print speed of up to 6 IPS
  • Fast processing with extended battery life
  • IP54 without case on Plus Model
  • Combo Dual Band Wireless Lan (802.11 a/b/g/n) model with support for Bluetooth 2.1
  • SOTI Connect certified for IoT device management

Specifications: B-FP3D

Printing Technology:
Direct thermal
Thermal Print Head Type:
Reflective, Transmissive*
Dimensions (W x D x H):
116 x 150 x 80 mm
0.7 kg (including battery)
User Interface:
Full colour LCD screen (128 x 128 pixel), 2 LED Status indicators
Operator keys:
Power, Feed, Pause
Operating range -15°C to 50°C : Charging range 0°C to 40°C
Humidity :
25-85% non-condensing Relative Humidity
Power Supply :
2.5 Ah Li-ion Battery
64 MB (Flash ROM), 16/32* MB (S-RAM)
Drop Strength :
1.6m (multiple drops to concrete)
203 dpi
Print Speed:
Up to 152.4 mm/sec (6 ips)
Print width:
72 mm
Print length:
Max. 999 mm
UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Interleaved 2 of 5, Industrial 2 of 5, Postnet, RM4SCC, KIX-Code, GS1 Databar, Plessy
2D Codes:
Data Matrix, PDF417, Maxicode,QR Code, Micro PDF417, Micro QR,Security QR, GS1 Datamatrix
Bitmap, Outline, Price font, TTF , OTF
Backing Paper Width :
Media thickness:
0.051-0.165 mm
Inner Media Code Diameter :
12mm (with/without core)
Media width:
24 - 80 mm
Outer Media Roll Diameter :
Max. 66.8mm
Media type:
Receipt, Tag, Label*
Issue mode:
Batch, Strip*
Language mode :
TPCL, Label, ZPLII, CPCL, ESC/POS, BCI (Function)
Printer Drivers:
Windows 10/8/7 (32/64 bit), Windows Server 2012.Server 2008 (32/64 bit), OPOS, JPOS
iOS, Android, Windows CE/Windows Mobile
USB 2.0, Bluetooth 4.0 BLE Dual or Wireless LAN (802.11 b/g/n) or Combo module with Dual band Wireless LAN (802.11 a/b/g/n) and Bluetooth 2.1
Label Software :
Bartender Ultra Lite
IoT Device Management:
SOTI Connect (WLAN models only)
B-FP3D Plus Model only

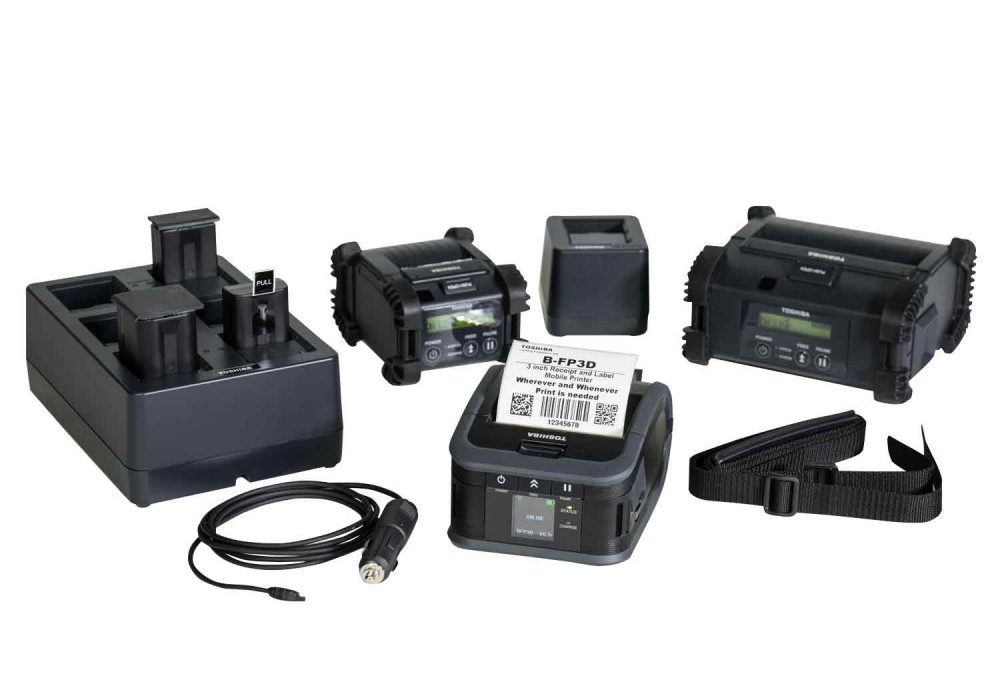

  • B-EP800-AC-QM-R - AC Adaptor (220 V)
  • B-EP802-DC12-QM-R - Cigarette Lighter Adaptor (12 V)
  • B-EP800-CHG6-QM-R - 6-Slot Battery Charger
  • B-EP800-DC48-QM-R - DC Adaptor (12 V-48 V)
  • B-EP800-CHG-QM-R - 1 -Slot Battery Charger
  • B-FP800-DCJA-QM-R - DC Jack adapter to enable standard power supplies to charge the B-FP series
