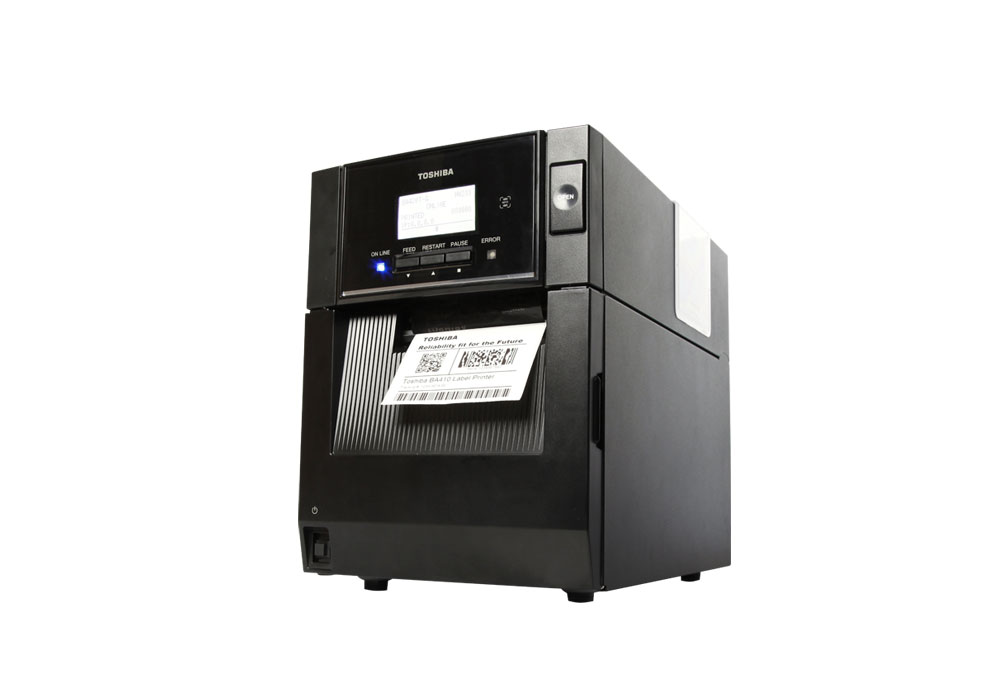

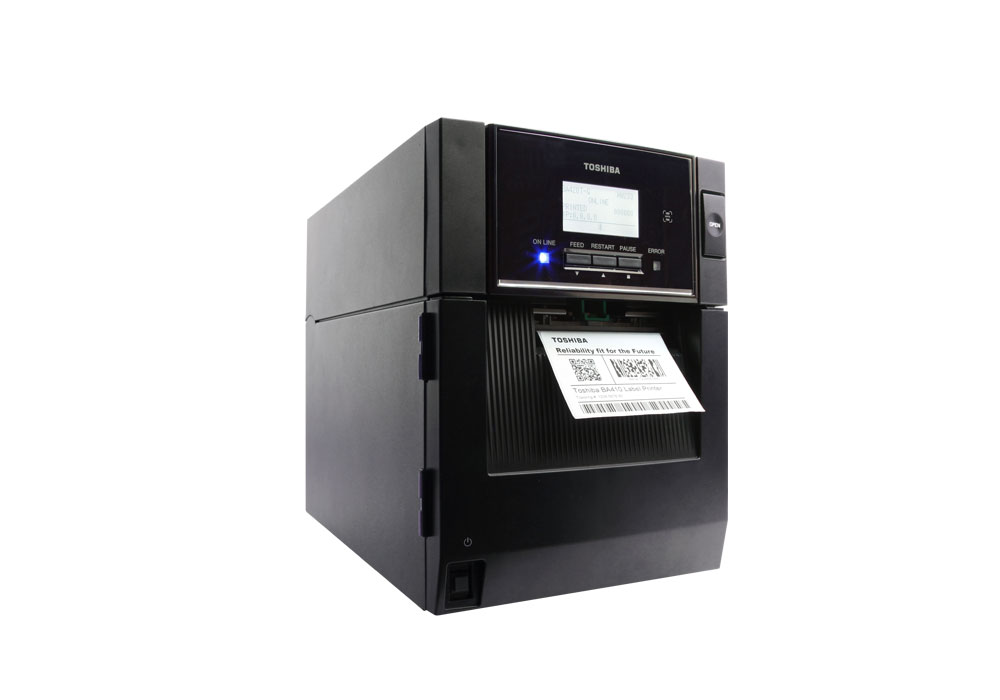

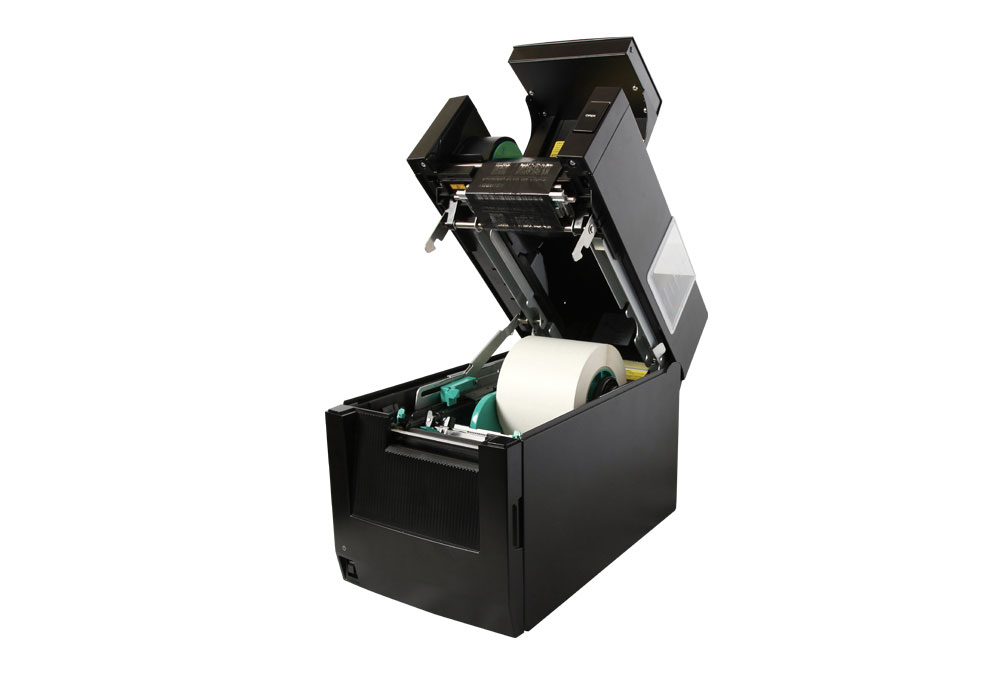

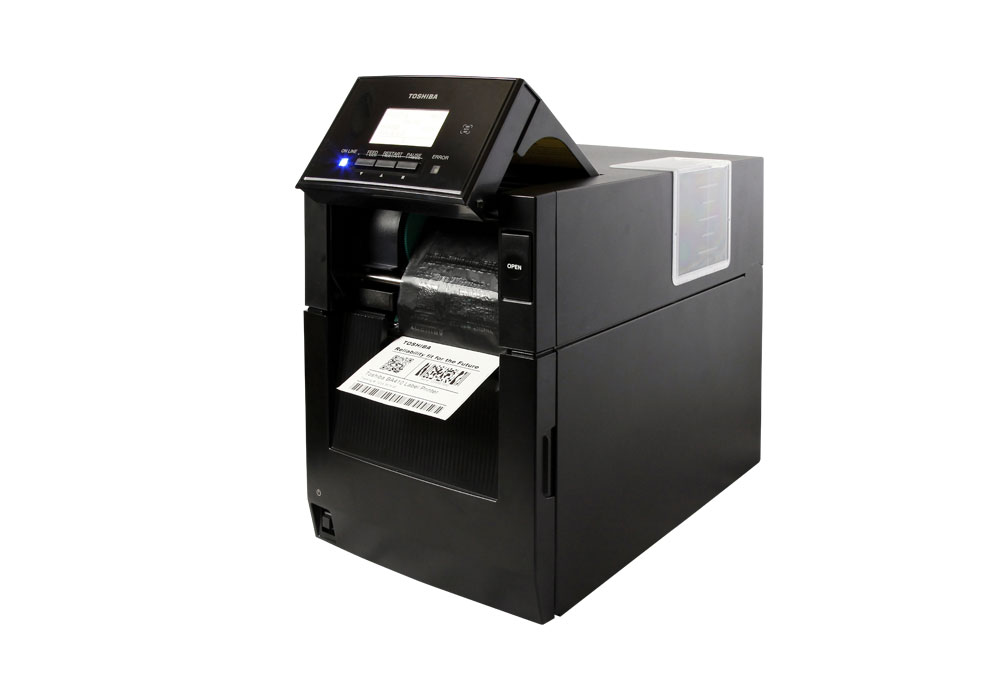

BA410T

Built on the renowned mechanical platform of its predecessor, the Toshiba BA410T retains all the superb reliability and robustness – even in rugged environments.

The Toshiba BA410T with its entirely new software platform ensures it will keep pace even with the latest technology standards and requirements. Thanks to future-proof options and a broad set of features, the BA410T offers solutions that are usually reserved for industrial printers only.
  • Extensible OS architecture fit for future trends
  • Improved productivity thanks to increased print speed with superior print quality
  • Outstanding reliability and robustness to eliminate almost any downtime
  • Easy to use high performance printer suitable for versatile environments
  • Wide range of features and options to adapt to ever-changing workplaces
  • SOTI Connect certified for IoT device management

Specifications: BA410T

GENERAL

Printing Technology:
Thermal transfer, direct thermal
Thermal Print Head Type:
Flat head
Memory:
128 MB (FROM), 128 MB (SRAM)
Media loading:
Top opening
User Interface:
LCD screen (graphic 128 x 64 dots), 2x LED, 3x key
Operator keys:
Feed, Restart, Pause
Dimensions (W x D x H):
245 x 414 x 333 mm
Weight:
15 kg
Duty Cycle**:
5,000 labels / day
Operating Temperature/Humidity:
5°-40°C (41°-104°F) / 25-85% non-condensing relative humidity (RH)
Storage Temperature/Humidity:
-40°-60°C (-40°-140°F) / 10-90% non-condensing relative humidity (RH)
Power Supply :
AC 100-240 V, 50/60 Hz
Duty Cycle**:
5,000 labels / day

PRINT

Sensor:
Reflective, transmissive
Resolution:
203 dpi, 300 dpi
Print Speed:
Up to 8 ips (203.2 mm/sec)
Print width:
GS12: Max. 104 mm (4.09 inches), TS12: Max. 105.7 mm (4.16 inches)
Print length:
Max. 1,498 mm
Barcodes:
UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, POSTNET, RM4SCC, KIX Code, Customer Barcode, GS1 DataBar
2D Codes:
Data Matrix, PDF 417, MaxiCode, QR Code, Micro PDF 417, CP Code, Aztec, GS1 Data Matrix, Micro QR Code
Fonts:
Bitmap font, outline font, price font, TTF, OTF, writable characters

RIBBON

Ribbon width:
60 - 110 mm
Ribbon Core Size:
25.4 mm (1 inch)
Ribbon Core Width :
Fixed 118 mm
Max Ribbon Length:
450 m
Max ribbon roll diameter:
75 mm

MEDIA

Alignment:
Centred
Media width:
Direct thermal: 22 - 118 mm,
Thermal transfer: 22 - 114 mm
Media thickness:
Direct thermal: 0.08 - 0.17 mm
Thermal transfer: 0.1 - 0.17 mm
Core diameter:
38 mm, 40 mm, 42 mm, 76.2 mm
Max outer roller diameter:
200 mm
Media type:
Vellum paper and labels, matt coated paper, glossy coated paper, synthetic film, PET film, polyimide
Media Format:
Roll, fanfold

SOFTWARE & CONNECTIVITY

Emulation:
ZPL II, SBPL, DPL, EPL, IPL
Printer Drivers:
Windows 10/8.1/8/7 (32/64 bit), Windows Server 2016, Windows Server 2012 R2/Server 2012/Server 2008 R2, Linux, SAP
SDK:
iOS, Android, Windows, Java
Interface:
USB 2.0 HS, Ethernet 10/100 Base T (IPv4 & IPv6), Bluetooth V2.1 EDR with MFi certified, NFC (for Bluetooth pairing), WLAN 802.11a/b/g/n (dual band for 2.4 GHz/5 GHz)*, parallel port*, serial port*, expansion I/O*
Language mode :
TPCL, Basic Command Interpreter (BCI)
Label Software :
BarTender UltraLite (co-packed)
IoT Device Management:
SOTI Connect

FUNCTIONS

Issue mode:
Batch, Auto cut*, Peel-off*
System Features:
Double Engine Ribbon Tension Control, Snap-in Print Head, SNMP network management tool for PC/Android/iOS, Cover damper
**:
GUIDE to the no. of 4'' high labels a day a printer may produce. This is not a guarantee nor a limitation of performance

Accessories

  • BA904-H-QM-S - Peel Off Module for BA410
  • BA700-RTC-QM-S - Real Time Clock for BA400 series
  • BA700-RS-QM-S - Serial Interface for BA400 series
  • BA704-RFID-U4-EU-S - UHF RFID Module Kit for BA400 series
  • BA700-CEN-QM-S - Centronics / Parallel Interface for BA400 series
  • BA700-IO-QM-S - Expansion I/O Board for BA400 series
  • BA700-WLAN-QM-S - Wireless LAN Interface Kit for BA400 series
  • BA204-QM-S - Cutter for BA410
