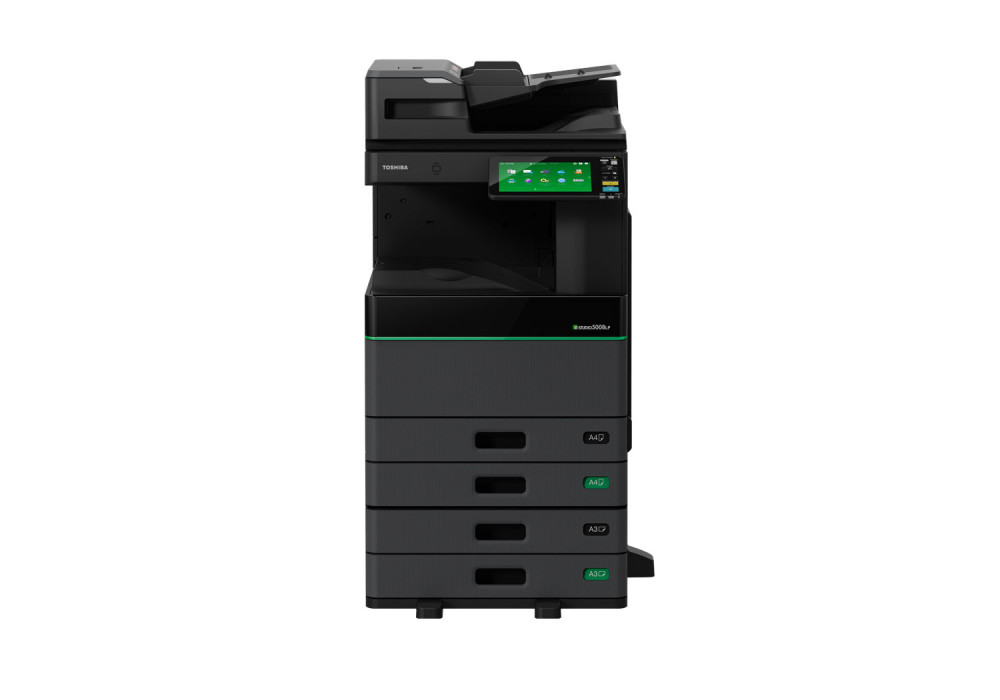

e-STUDIO4508LP

Combine efficiency, economy and ecology

Enjoy all features you need for your daily business and save resources by reusing your paper with Toshiba’s Hybrid MFP. Benefit from the advanced technology to enhance your business and at the same time reduce your carbon footprint.
  • The world’s first multifunction system with erasable print function.
  • Thanks to the unique hybrid printing technology, one single device prints regular as well as reusable prints which saves paper.
  • Equipped with the state-of-the-art features modern document workflows need.
  • Designed for businesses which want to combine ecology, economy and efficiency.

For more information please visit our Hybrid MFP page.

Specifications: e-STUDIO4508LP

Print & Copy Speed:
Monochrome: 45 ppm (A4)
22 ppm (A3)
Erasable Blue: 35 ppm (A4)
18 ppm (A3)
Erase Speed:
Cassette: 17.5 ppm (A4), 8.5 ppm (A3)
Bypass: 14.5 ppm (A4), 7.5 ppm (A3)
Warm-up Time:
Approx. 26 seconds from low power mode
Paper Size & Weight ** :
Cassettes: A5R-A3, 60-256 g/m²
Bypass: 100 x 148 mm-A3, 60-256 g/m²
Paper Capacity:
2x 550 sheets (Cassettes)***, 1x 100 sheets (Bypass)****
Maximum 3,200 sheets
Inner Output Tray (virgin/reusable paper) :
With Bridge Kit: 150/120 sheets
Without Bridge Kit: 400/320 sheets
Automatic Duplex** :
A5R, A4, A4R, A3 and other standard formats, 60-256 g/m²
Controller Type:
Toshiba e-BRIDGE
Control Panel:

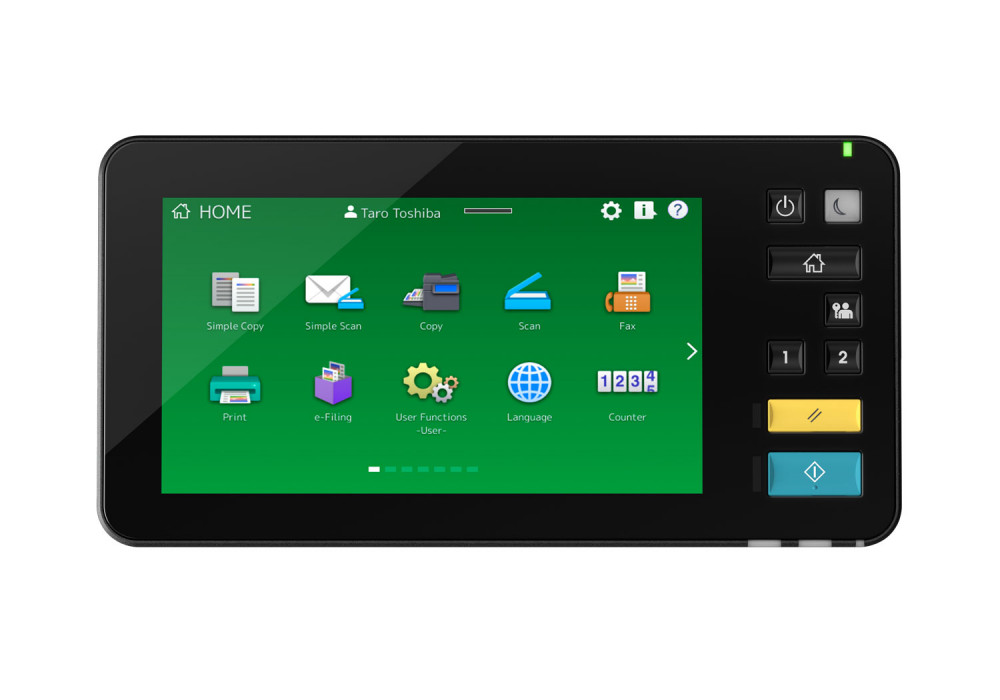

22.9 cm (9") Multi-Touch Colour Panel
Memory:
Toshiba Secure HDD 320 GB*****, 4 GB RAM
Interface:
10Base-T/100Base-TX/1000Base-T,
High-Speed USB 2.0, WLAN* (IEEE802.11b/g/n), Bluetooth*, Wi-Fi Direct*
Dimensions & Weight:
585 x 640 x 787 mm (W x D x H), ~ 73 kg
Resolution:
600 x 600 dpi, 5bit,
1,200 x 1,200 dpi, 2 bit (equiv. 3,600 x 1,200 dpi) with PostScript driver
Page Description Languages:
PCL5e, PCL5c, PCL6 (PCL XL), XPS and PostScript 3 compatible
Supported Systems:
Windows 10/8.1/7/Server 2008 (32/64 bit), Windows Server 2016/Server 2012/Server 2012 R2/Server 2008 R2 (64 bit), Mac OS X 10.6.8-10.12, Linux/Unix, Citrix, Novell SLES, SAP, AS/400
Network Protocols :
TCP/IP (IPv4/IPv6), IPX/SPX, EtherTalk, NetBios over TCP/IP
Toner Modes :
Erasable Blue, Monochrome
Mobile Printing :
e-BRIDGE Print & Capture, AirPrint, Mopria Print Service, Google Cloud Print
Print Functions:
Universal Driver, Driver Templates, Driver plug-ins*, Print from USB, Hold print, Tandem printing
Resolution:
Maximum 600 x 600 dpi
Scan Speed:
Reversing Automatic Document Feeder*:
up to 73 ipm (300 dpi) in colour and monochrome
Dual Scan Document Feeder*:
up to 240 ipm (300 dpi) in colour and monochrome
Scan Modes:
Auto-Colour (ACS), Colour, Greyscale, Monochrome
File Formats:
JPEG, Multi/Single Page TIFF/XPS/PDF, Secure PDF, Slim PDF, PDF/A, Searchable PDF* (and other formats like DOCX, XLSX)*
Scan Functions:
WS Scan, Scan to USB, Scan to E-Mail, Scan to File (SMB, FTP, FTPS, IPX/SPX, Local), Meta Scan*, OCR scan*, Scan to Box (e-Filing), WIA, TWAIN
Resolution:
Scan: 600 x 600 dpi
Print: 600 x 600 dpi,
2,400 (equiv.) x 600 dpi with smoothing
First Copy Output Time :
Monochrome: Approx. 4.4 seconds
Erasable Blue: Approx. 7.8 seconds
Zoom:
25-400% (Platen), 25-200% (RADF/DSDF)*
Copy Modes:
Text, Text/Photo, Photo, Blue Original
Copy Functions:
Electronic Sort, Rotate Sort, ID Card Copy, Edge Erase, 2-in-1 / 4-in-1 mode
Communication:
Super G3, G3 - (opt. 2nd line), Internet Fax T.37
Transmission Speed:
Approx. 3 seconds per page
Compression:
JBIG, MMR, MR, MH
Fax Memory:
1 GB Transmission/Reception
Network-Fax:
Driver for Windows 10/8.1/7/Server 2008 (32/64 bit), Windows Server 2016/Server 2012/Server 2012 R2/Server 2008 R2 (64 bit)
Incoming Fax Routing:
To shared folders (SMB, FTP, IPX/SPX), E-Mail, e-Filing
Device Management:
e-BRIDGE Fleet Management System*, TopAccess for remote administration and configuration
System Features:
e-Filing document server for secure storage, Document distribution and Print-on-Demand (1 public box, 200 user boxes), 12,060 one-touch templates for storage of personalised settings or workflows, Scan/Fax Preview, RIP-while-Print,e-BRIDGE Open Platform*, Embedded Web Browser, Job Skip, Erasing of Original Blue Toner
Accounting & Security:
Role Based Access, LDAP support, 1,000 department & 10,000 user codes, Card Reader*, Private print, Standard data encryption with Toshiba Secure HDD, Data Overwrite Enabler*, IP and MAC address filter, Port filter, Support of SSL and IPsec* protocols, IEEE802.1x support, IEEE2600.2 compliant*, Scan to Secure PDF
*:
Productivity and paper specifications are related to a paper size of A4 and a paper weight of 80 g/m² if not otherwise mentioned.
*****:
1 GB = 1 billion bytes; the actual formatted capacity is less. Available capacity will also be less if software applications are pre-installed.
**** :
If bypass is used for reusable paper, paper capacity of bypass is max. 30 sheets.
***:
If cassette is used for reusable paper, paper capacity of cassette is max. 400 sheets.
**:
Paper weight for Erasable Blue mode: 64-80 g/m².

Accessories

  • e-STUDIO RD301 - KH-1021EU
  • GE-1230 - Toshiba Secure HDD
  • GN-4020 - Wireless LAN / Bluetooth Module
  • GP-1070 - Data Overwrite Enabler
  • GS-1007 - Unicode Font Enabler
  • GS-1010 - Meta Scan Enabler
  • e-BRIDGE Capture & Store - Simplify your workflows
  • e-BRIDGE Fleet Management System (EFMS) - Centralised administration and control over your Toshiba MFP and printer fleet
  • e-BRIDGE Job Build eX - Print Multiple Documents as a Single Set
  • e-BRIDGE Job Point eX - Increase your printing productivity. Print the same job on up to 10 Toshiba devices.
  • e-BRIDGE Job Separator eX - Batch printing made easy
  • e-BRIDGE Open Platform Connector for Google Drive - Scan to “Cloud” from your Toshiba MFP and retrieve your documents into your Google Drive account.
  • e-BRIDGE Open Platform Connector for Microsoft Exchange - Seamlessly integrate your “Scan to E-mail” documents into your Microsoft Exchange e-mail account
  • e-BRIDGE Open Platform Connector for Microsoft SharePoint - Send documents into Microsoft SharePoint destination folders directly from Toshiba MFPs
