BC400P

Toshiba redefines its Auto-ID solutions proposition with the addition of the BC400P. This pigment ink based colour label printer provides in-house labelling production with a cost-effective and durable solution. Toshiba helps you to take full control of your entire on-demand colour labelling processes.

The BC400P delivers the perfect labelling fit for just-in-time productions and short-run manufacturing. Produce the exact quantities you require at any time with the  flexibility to change information on the label whenever needed. Pre-printed labels belong to the past. Our digital colour labelling enables a new level of versatility whenever it comes to meeting the requirements of printing variable content.
  • Cost-effective and durable colour labelling for highly diverse applications that require to print variable content.
  • Produce on-demand the quantities you require at any time with the flexibility to change label information when needed.
  • High speed and high image quality printing for your in-house colour labelling needs.
  • Toshiba’s unique colour printing expertise enables the perfect fit for your colour labelling requirements.

Specifications: BC400P

BC400P

Type:
Desktop colour label printer
Print Method:
Inkjet
Dimensions (W x D x H):
386 x 570 x 394 mm, 386 x 697 x 394 mm (with cutter)
Weight:
25.5 kg (with print heads and ink tanks)
User Interface:
8x LED, 4x key
Operating Temperature/Humidity:
5°C to 35°C / 10 - 90% non-condensing relative humidity (RH)
Storage Temperature/Humidity:
-30°C to 50°C / 10 - 95% non-condensing relative humidity (RH)
Power Supply :
AC 100 to 240 V, 50/60 Hz
Initial Consumables:
Ink cartridge set (Black, Cyan, Magenta, Yellow, 105 ml each)

PRINTER

Printhead:
4x thermal line inkjet heads (Black, Cyan, Magenta, Yellow)
Print Head Width:
109.7 mm
Resolution:
1,200 x 600 dpi, 1,200 x 1,200 dpi
Number of Total Nozzles:
5,030 (printing), 5,184 (cleaning)
Nozzle Pitch:
0.02 mm (exact: 21.15 μm)
Sensor:
Reflective, transmissive
Max. Print Speed:
300 mm/second (11.8 ips)
Max. Print Width:
106.3 mm (auto image shift off), 105.9 mm (auto image shift on)
Print length:
3 - 397 mm
Colour Settings:
Colour correction, colour balance, brightness, density, contrast, pinpoint colour matches, overlay printing

INK

Ink Type:
Water-based pigment ink
Ink Tanks:
Independent ink tanks for Black, Cyan, Magenta, Yellow
Ink Tank Capacity:
240 ml per colour
Waste Ink:
Collection through maintenance cartridge
Cleaning Types:
Maintenance jet cleaning, wipe cleaning, suction cleaning

MEDIA

Alignment:
left
Backing Paper Width :
25.4 mm - 120.0 mm
Label Length:
6.0 mm - 500 mm
Label Thickness:
0.145 - 0.255 mm
Inner Media Code Diameter :
76.2 mm
Outer Media Roll Diameter :
max. 200 mm
Media type:
Matte coated paper, gloss coated paper, Polypropylene
Media Format:
Roll, fanfold

SOFTWARE & CONNECTIVITY

Printer Drivers:
Windows 11 (64 bit), Windows 10 (32/64 bit), Windows Server 2022/2019/2016 (64 bit)
Interface:
USB 2.0 Hi-speed, LAN 10/100/1000 Base, IPv6, RS232C (barcode reader connection) RS232C (external device connection)
Label Software :
BarTender Ultralite

OPTIONS

Options:

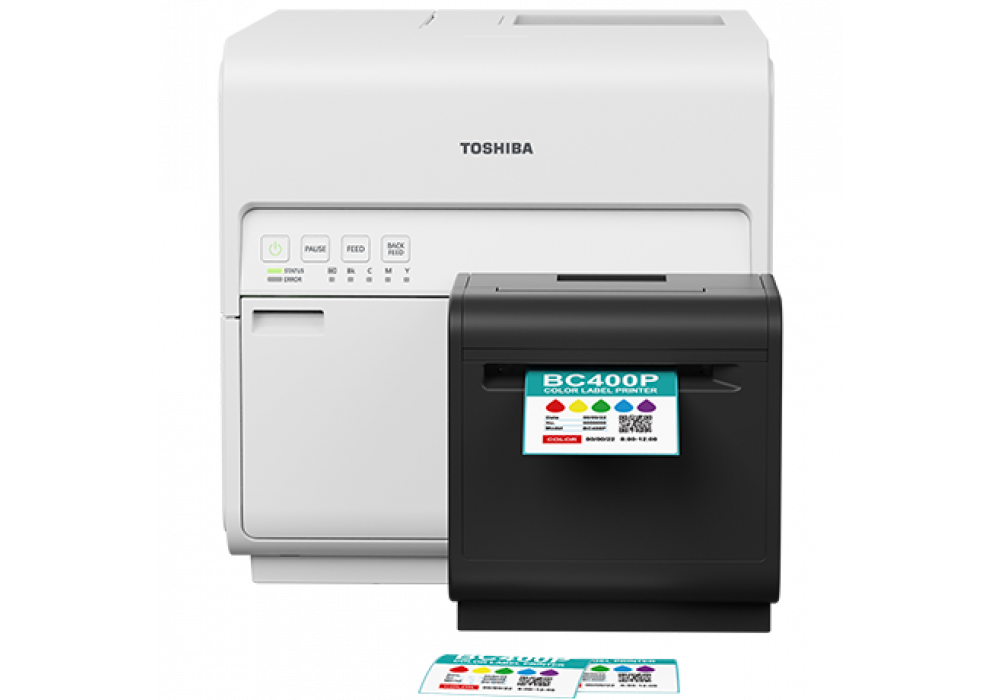

Automatic rotary cutter
