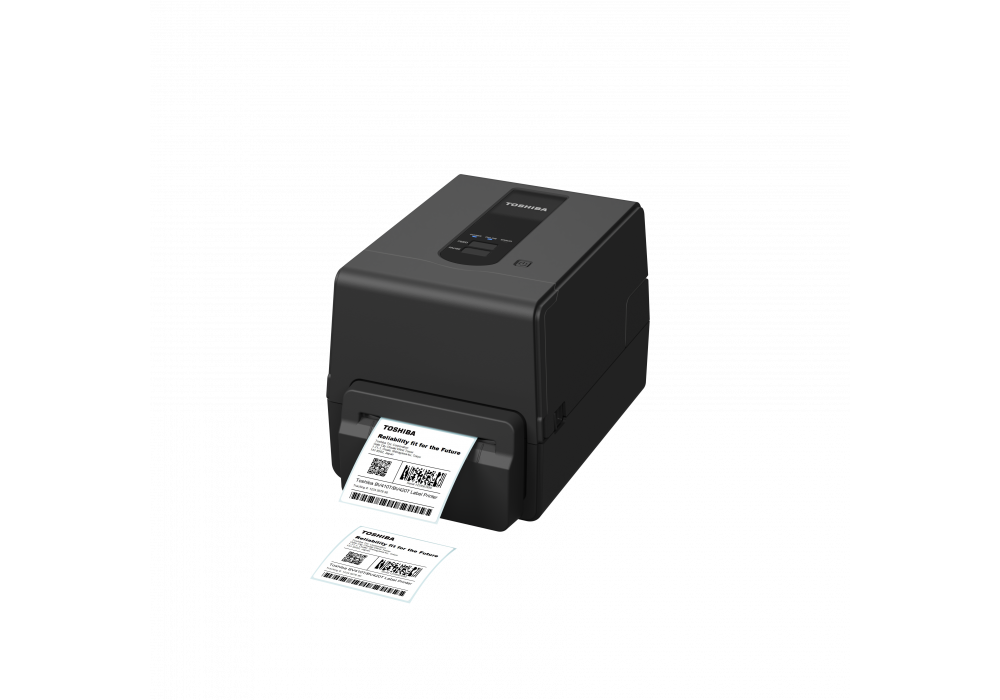

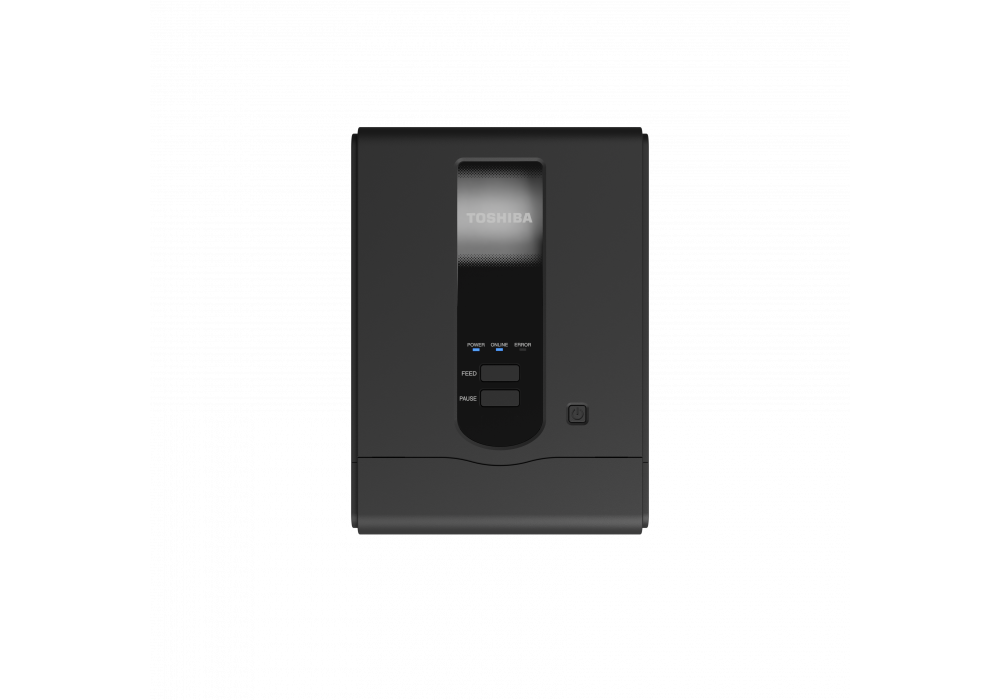

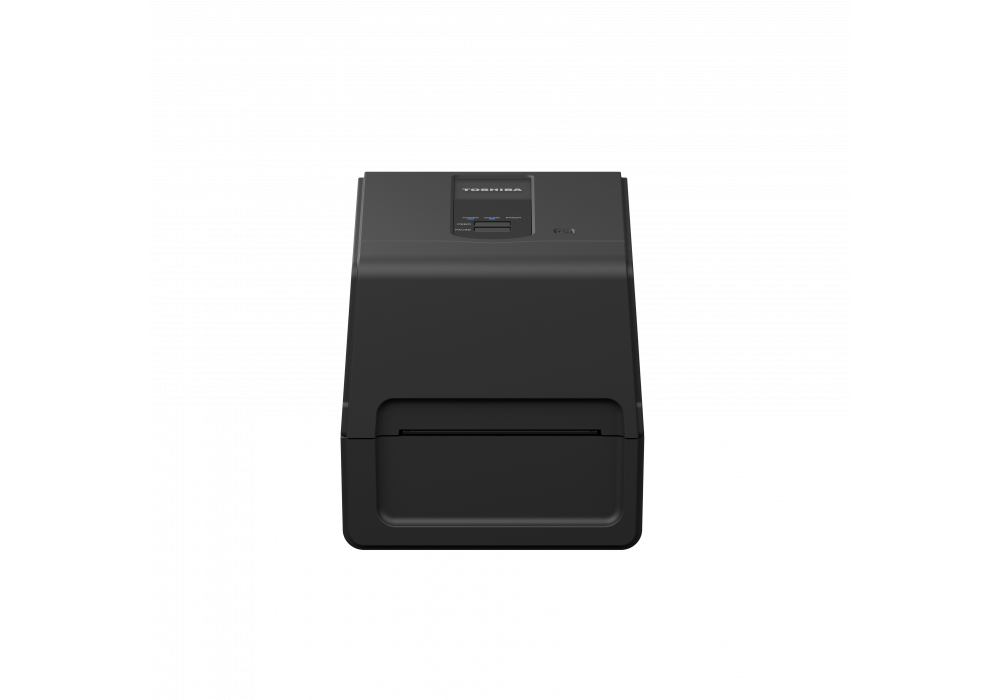

BV420T

The latest print technology incorporated into a sleek case design for ultimate user experience.

Coming with a new powerful and scalable system architecture the BV420T models are future-proove.  With its ergonomic style and sleek casing these printers suit retail shops, offices or any type of workplace where space is at a premium.  The BV420T thermal transfer printers support a wide range of ribbons from wax to resin.
  • Market leading throughput with up to 7 ips
  • Compact & sleek design with a small footprint
  • Intuitive & clear user experience
  • Vast print languages & emulations
  • SOTI Connect certified for IoT device management



See here the full potential of the BV400T series here:

Specifications: BV420T

GENERAL

Print Method:
Thermal transfer, direct thermal
Printhead:
Flat head
User Interface:
3x LED, 2x key
Dimensions (W x D x H):
200 x 267 x 198.3 mm
Weight:
2.9 kg
Memory:
128 MB (FROM), 128 MB (SRAM)
Operating Temperature/Humidity:
5°-40°C (41°-104°F) / 25-85% non-condensing relative humidity (RH)
Storage Temperature/Humidity:
-40°-60°C (-40°-140°F) / 10-90% non-condensing relative humidity (RH)
Power Supply :
AC 100-240 V, 50/60 Hz

PRINT

Sensor:
Reflective, transmissive
Resolution:
GS02: 203 dpi, TS02 300 dpi
Max. Print Speed:
GS02: 7 ips (177.8 mm/s), TS02: 5 ips (127 mm/s)
Max. Print Width:
GS02: 108 mm, TS02: 105.7 mm
Print length:
Batch: 6-997.9 mm, Cut: 20.4-997.9 mm*, Peel-off: 21.4-148.4 mm*
Barcodes:
UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, POSTNET, RM4SCC, KIX Code, Customer Barcode, GS1 DataBar, USPS Intelligent Mail Barcode
2D Codes:
Data Matrix, PDF 417, MaxiCode, QR Code, Micro PDF 417, Micro QR, GS1 Data Matrix, GS1 QR Code, Aztec Code
Fonts:
Bitmap font, outline font, price font, optional TTF, writable characters

RIBBON

Ribbon width:
40 - 110 mm
Ribbon Core Size:
25.4 mm (1"), 12.7 mm (0.5")
Max Ribbon Length:
300 m
Max ribbon roll diameter:
65 mm

MEDIA

Alignment:
Centred
Backing Paper Width :
25.4-118 mm
Label Thickness:
0.06-0.19 mm
Inner Media Core Diameter:
Standard: 25.4, 38.1, 42 mm, Optional: 76.2 mm
Outer Media Roll Diameter :
Standard: Max. 127.0 mm, Optional: Max. 214 mm
Media Format:
Roll, fanfold

SOFTWARE & CONNECTIVITY

Emulation:
ZPL II, DPL, SBPL, EPL2, IPL
Printer Drivers:
Windows 11/10, Windows Server 2019/2016/2012 R2/2012, SAP, Linux, macOS
SDK:
iOS, Android, .NET
Interface:
USB 2.0, USB Host, Ethernet 10/100 Base T (IPv4 & IPv6), Bluetooth V5.2 BR/EDR with MFi certified*/**, serial port*
Language mode :
TPCL, Basic Command Interpreter (BCI)
Label Software :
BarTender UltraLite, NiceLabel Free
IoT Device Management:
SOTI Connect

OPTIONS

Full cutter module, partial cutter module, peel-off module, serial interface board, Bluetooth module, AC adapter cover, external media stand, print head kits for resolution change
**:
Availability varies from country to country

Accessories

  • BV224-P-QM-S - Partial cutter for BV420D
  • BV224-F-QM-S - Full cutter for BV420D
  • BV904-PH-QM-S - External 8” OD Media Stand for BV400D series
  • BV700-RS-QM-S - RS-232C serial interface for BV400D series
  • BV924T-AC-QM-S - AC adaptor cover for BV420T
  • BV924T-H-QM-S - Peel Off Module for BV420T
  • BV700T-BLTH-QM-S - Bluetooth interface (V5.2 + BR/EDR) for BV400T series
