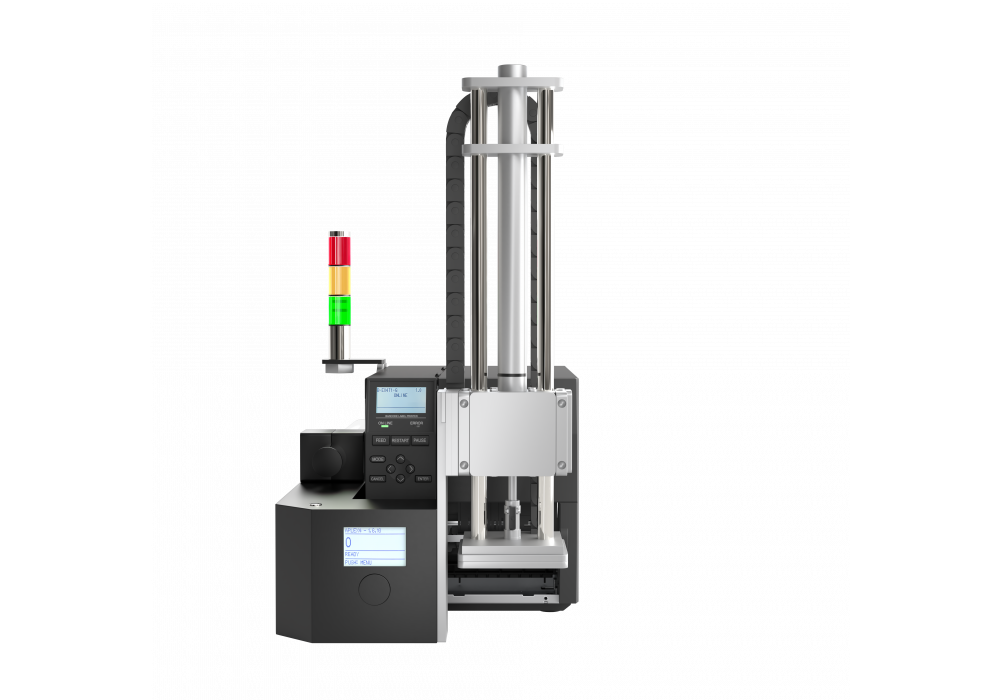

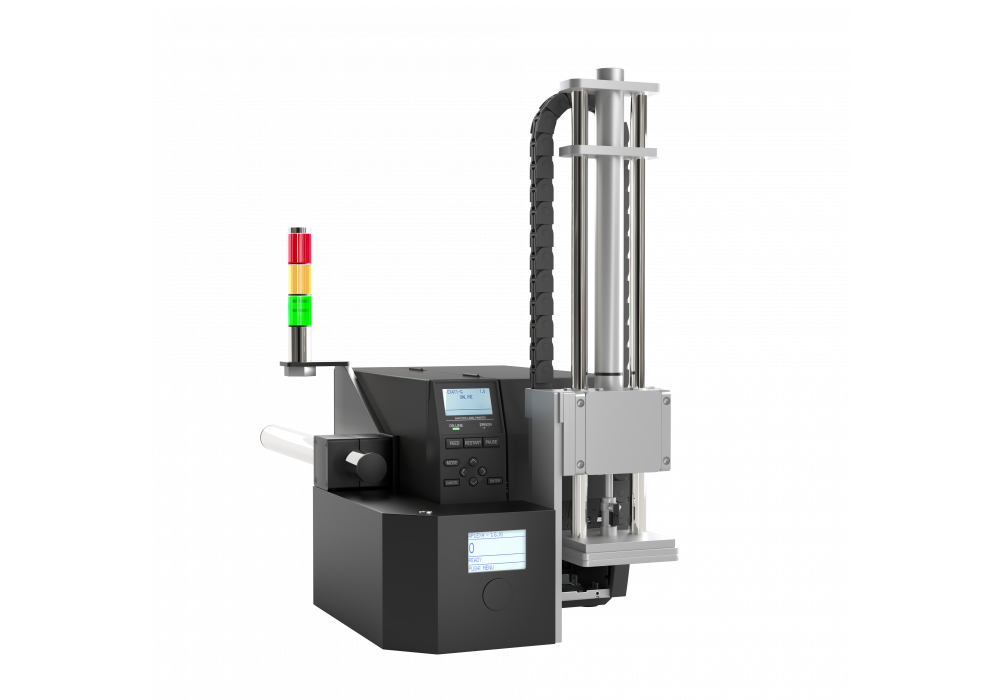

APLEX4

Just add air

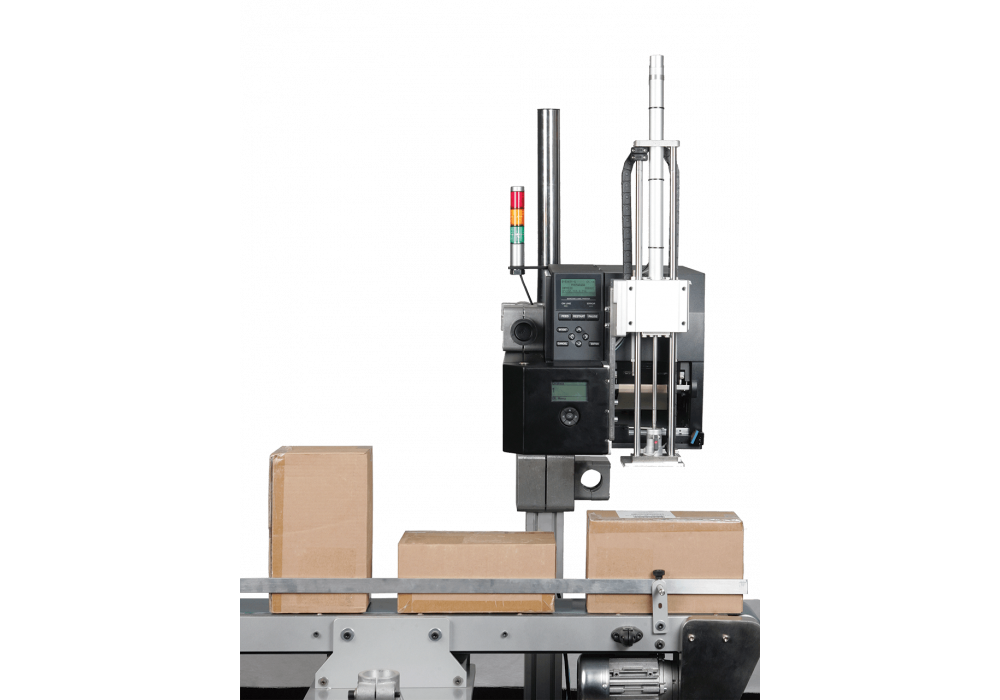

Combining the APLEX4 with Toshiba’s B-EX4 series creates an off-the-shelf solution which requires no modifications or re-designing of existing production lines. Easy to maintain this ready-to-go solution enables in-line operation and increases the efficiency of your production workflows.
  • The APLEX4 label applicator is an optional add-on for the B-EX4 series industrial printers. When combined they provide a robust all-in-one automated printing solution.
  • This off-the-shelf solution provides a cost-effective automatic print and apply system for a wide range of applications in a variety of sectors.
  • Very easy to install and use the self-contained solution provides an easy step from manual to automatic labelling.

 Find out more about label automation here.


See here how Toshiba's print & apply system APLEX4 improves production processes.

Specifications: APLEX4

APLEX4

Application Method:
Direct tamp, tamp blow (stationary or moving carton)
Label Application:
Up to 30 labels/min., 25 x 25 mm - 116 x 200 mm (additional applications upon request)
Piston Stroke Applicator:
max. 400 (usable 250 mm), Auto height detection - Package flexibility (variable height carton/product)
Working Modes:
Print & apply, print & wait up/down & apply
Air Pressure:
4 - 6 bars / 8 mm tube diameter, includes internal air filter
In/Out Signal:
Print / apply / inhibition / test button, Ready/ error (status light) / working
Secondary Signals:
Perimeter / presence of hand
Fixing System:
50 mm tube diameter
Dimensions (W x D x H):
365 x 585 x 705 mm

PRINTERS

Print Method:
B-EX4T1: Direct thermal / Thermal transfer; B-EX4T2: Direct thermal / Thermal transfer; B-EX4T3: Direct thermal / Thermal transfer; B-EX4D2: Direct thermal
Max. Print Width:
104 mm
Max. Print Speed:
B-EX4T1: 355 mm/sec (14 ips); B-EX4T2: 304 mm/sec (12 ips); B-EX4T3: 152 mm/sec (6 ips); B-EX4D2: 304 mm/sec (12 ips)
Resolution:
B-EX4T1: 203 / 305 dpi; B-EX4T2: 203 / 305 / 600 dpi; B-EX4T3: 600 dpi; B-EX4D2: 203 dpi
Barcodes:
UPC/EAN/JAN, Code 39, Code 93, Code 128, NW7, MSI, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, POSTNET, RM4SCC, KIX Code, Customer Barcode, GS1 DataBar
2D Codes:
Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, CP Code
Fonts:
Bitmap font, outline font, price font, optional TTF, writeable characters

MEDIA

Alignment:
B-EX4T1: Centre; B-EX4T2: Left; B-EX4T3: Centre; B-EX4D2: Left
Backing Paper Width :
B-EX4T1: 120 mm; B-EX4T2: 114 mm; B-EX4T3: 114 mm; B-EX4D2: 114 mm
Core diameter:
External rewinder 200 mm with inner core dimension of 76 mm
Standard ribbon length:
B-EX4T1: 600/800 m; B-EX4T2: 450/600/800 m; B-EX4T3: 300 mm

OPTIONS

Options:
Light status indicator, hand presence sensor, support column, Peel & present & internal rewinder (required for APLEX4), Ribbons save (B-EX4T1 only), RFID kit (B-EX4T1 only)
